Topographic Surveys for BC Permits

The foundation of every successful BC permit application — mapping the handshake between legal property lines and your home's structural reality.

Survey Data Checklist for Permit Drawings

Use this checklist to confirm your surveyor will deliver everything needed before design starts.

Step	What to Do	Official Link
1. Hire a BCLS	Confirm the firm holds current registration with the Association of BC Land Surveyors.	ABCLS Member Directory
2. Request Topographic Survey for Design	Specify topographic contours (0.5m or 1.0m), boundary pins, existing trees, and all easements.	ABCLS.ca
3. Confirm Digital CAD Delivery	Require .dwg vector file delivery. A PDF-only survey cannot be used for high-precision 3D Revit modelling.	Contact Canadian Blueprint
4. Integrate Structural Data	Email the .dwg file to us. We will layer this with our internal LiDAR data to create a 'Digital Twin' of the property.	As-Built Measuring

Project Roadmap & Scope of Work

Select a phase below to jump to the details

1
Hire a BCLS
2
Request Topographic Survey
3
Confirm CAD File Delivery
4
Sync Structural As-Builts

Step 1: Hire a BCLS

Phase 01

In British Columbia, you cannot build on a guess. Whether planning a custom home in Coquitlam or a multi-unit project in Surrey, the municipality requires a Topographic and Boundary Survey certified by a BCLS (BC Land Surveyor) before reviewing building permit drawings.

At Canadian Blueprint, we anchor our 3D Revit models to stamped surveyor pins so your permit drawings reflect exact legal property boundaries and natural grade elevations.

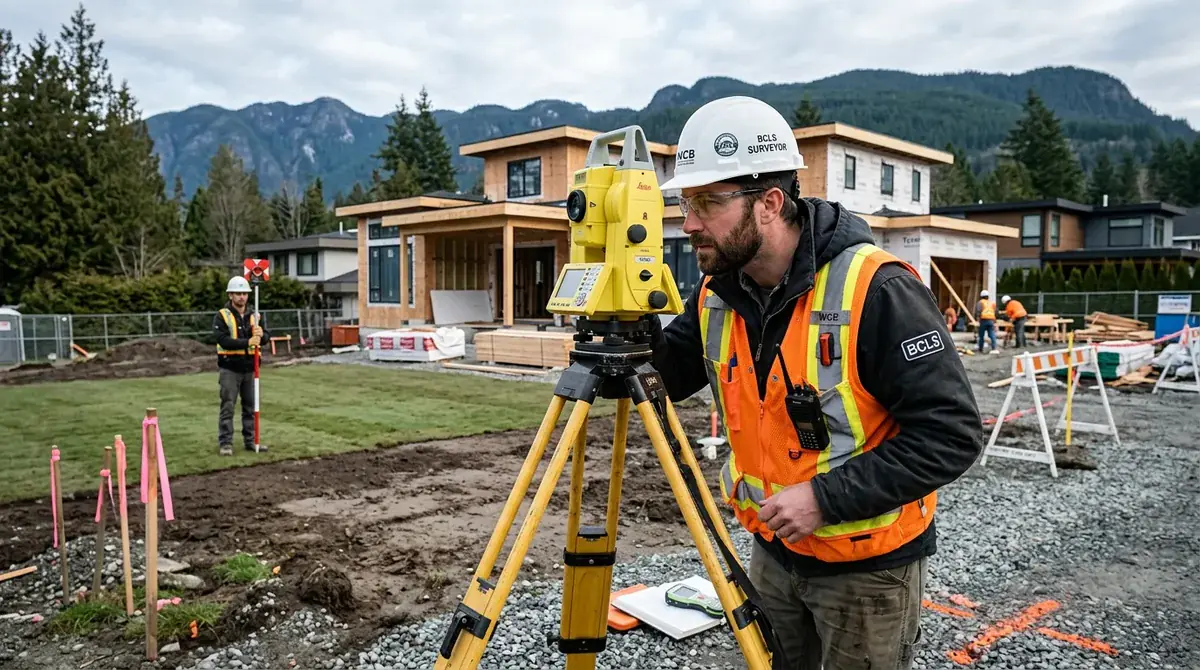

BCLS Legal Survey BCLS certified land surveyor with robotic total station equipment

BCLS Legal Boundary & Elevation Survey: On-site precision total station surveying establishing certified property lines, natural grades, and elevation contours.

Step 2: Request Topographic Survey

Phase 02

Only a licensed BCLS can legally establish property lines and boundary pins in BC. We recommend working with experienced Lower Mainland survey teams:

Target Land Surveying

Fast, responsive, and highly reliable for residential renovations and new builds.

Bennett Land Surveying

Specialists in complex topography, steep slopes, and hillside municipal approvals.

Step 3: Confirm CAD File Delivery

Phase 03

When requesting your survey, specify a Topographic and Boundary Survey for Design Purposes. Ensure your surveyor includes:

Boundary Pins: Verified property corners and lot dimensions marked on-site.
Topographic Contours: 0.5m elevation intervals to calculate foundation depth and site drainage.
Average Natural Grade (ANG): Essential for calculating maximum allowable building height under BC zoning bylaws.
Existing Site Features: Protected trees (over 20cm DBH), utility connection stubs, easements, and rights-of-way.

Step 4: Sync Structural As-Builts

Phase 04

Before the surveyor begins fieldwork, confirm in writing that you will receive the raw digital .dwg (AutoCAD) vector file alongside the stamped PDF.

PDF scans cannot be imported directly into 3D CAD/BIM software with millimeter accuracy. Having the original vector CAD file allows our drafting team to immediately integrate topographic data into your permit set.

Step 4: Synchronize with High-Precision Structural As-Builts

Phase 04

"The Land Surveyor maps the world outside your walls; we map the world inside them." For renovations and additions, Canadian Blueprint merges BCLS exterior pins with internal 3D LiDAR laser scans:

Feature	BCLS Topographic (Exterior)	Structural As-Builts (Interior)
Legal Boundaries	Yes • Sets legal property pins	No • Maps building envelope
Internal Assemblies	None • Exterior only	Complete • 3D structural mapping
Wall Geometry	None	Yes • Captures true thicknesses
Permit Purpose	Required for Site Plans & Heights	Required for Renovation Drawings

Already Have a Survey?

Guide

If you aren't sure whether your existing land survey is still valid or complete for your municipal permit application, contact Canadian Blueprint. We can review your PDF or CAD file to confirm whether it meets current city requirements.
